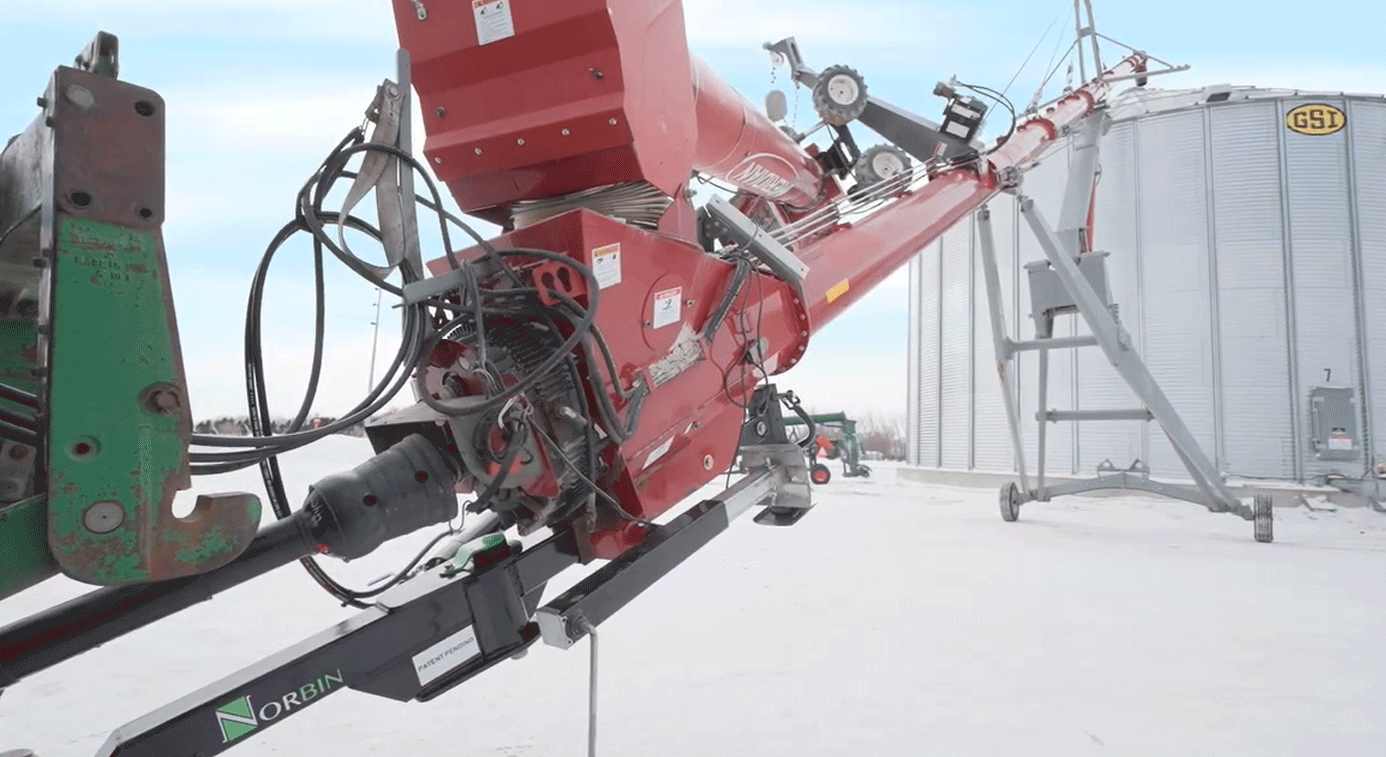

AIM PRO – Hydraulic Auger Alignment System
The Aim Pro assist in aligning your auger — giving you precise side-to-side control directly from your tractor cab using your existing hydraulic system.
With up to 4 feet of total swing range (approximately 2 ft in either direction), Aim Pro allows you to:
-
Make real-time adjustments from the cab
-
Fine-tune positioning while unloading
-
Correct alignment even after the auger is weighed down with grain
When the truck is waiting and the bin needs to be filled fast, you can dial it in instantly.
Aim Pro is a patent pending design, engineered for durability:
-
Reinforced pivot points
-
Heavy-duty steel construction
-
Precision welds designed for repeated load stress
-
Securely mounted components for smooth, controlled movement
This isn’t a light-duty add-on.
It’s built to perform year after year.
Compatible With Leading Auger Brands

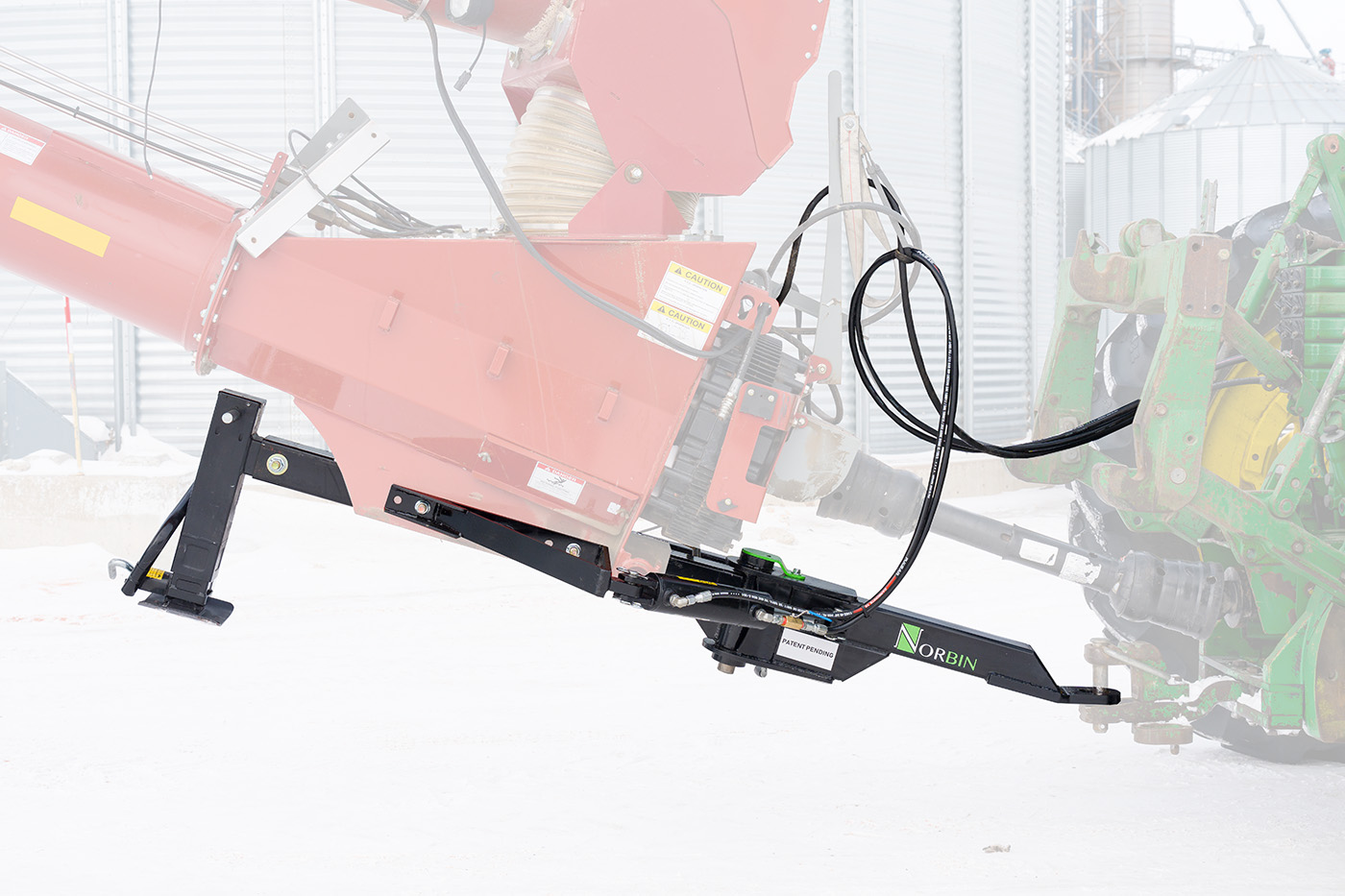

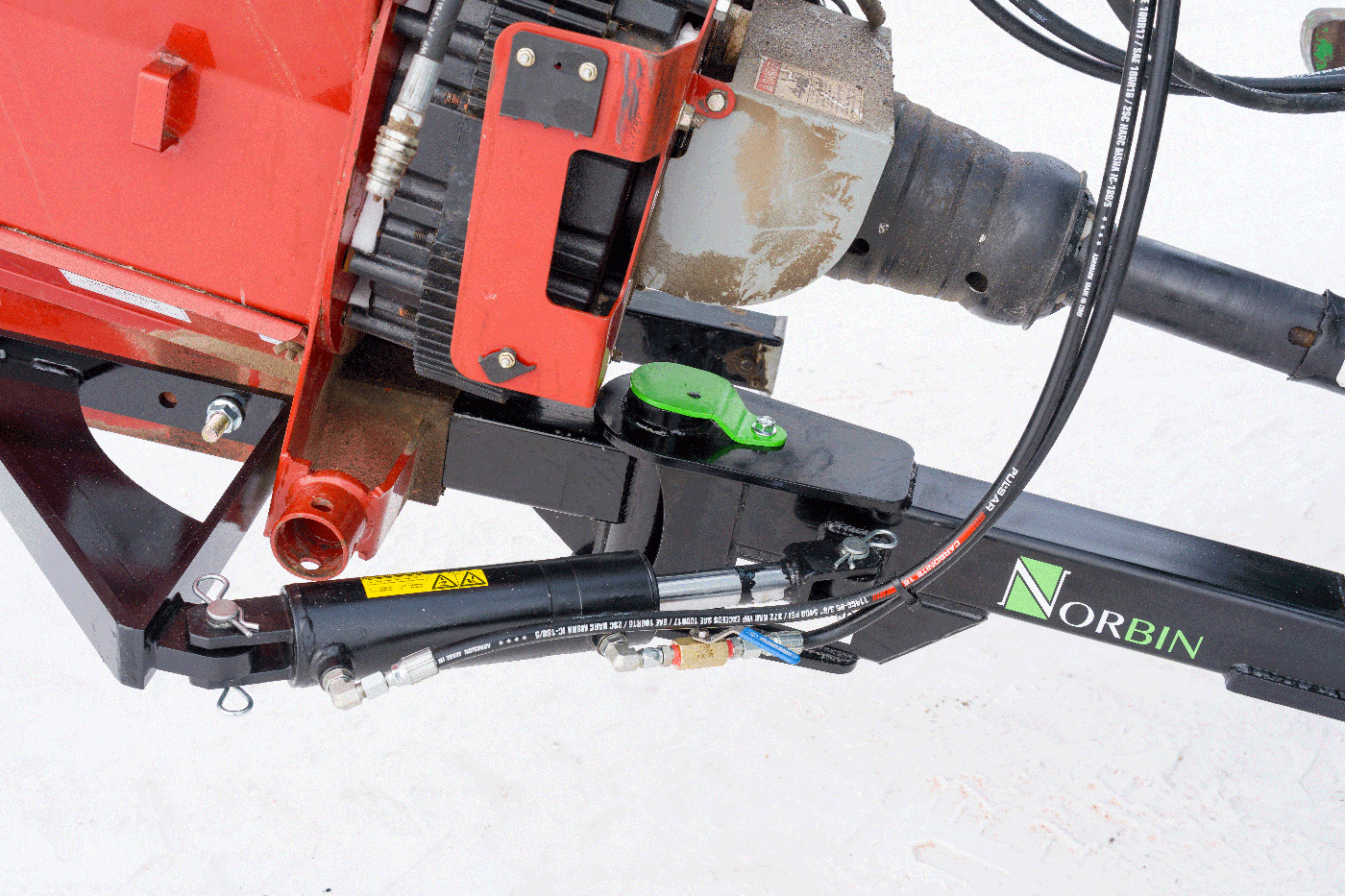

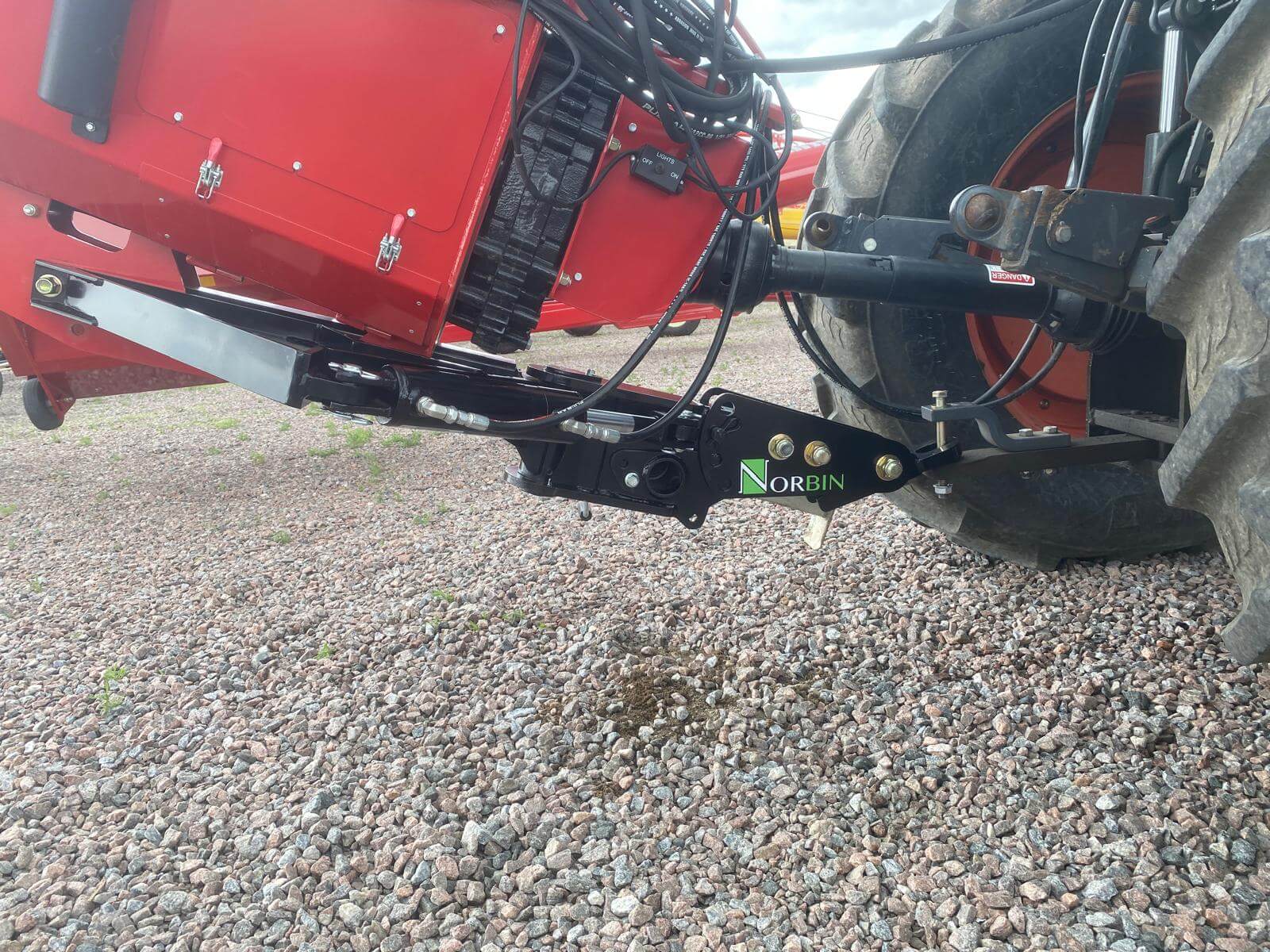

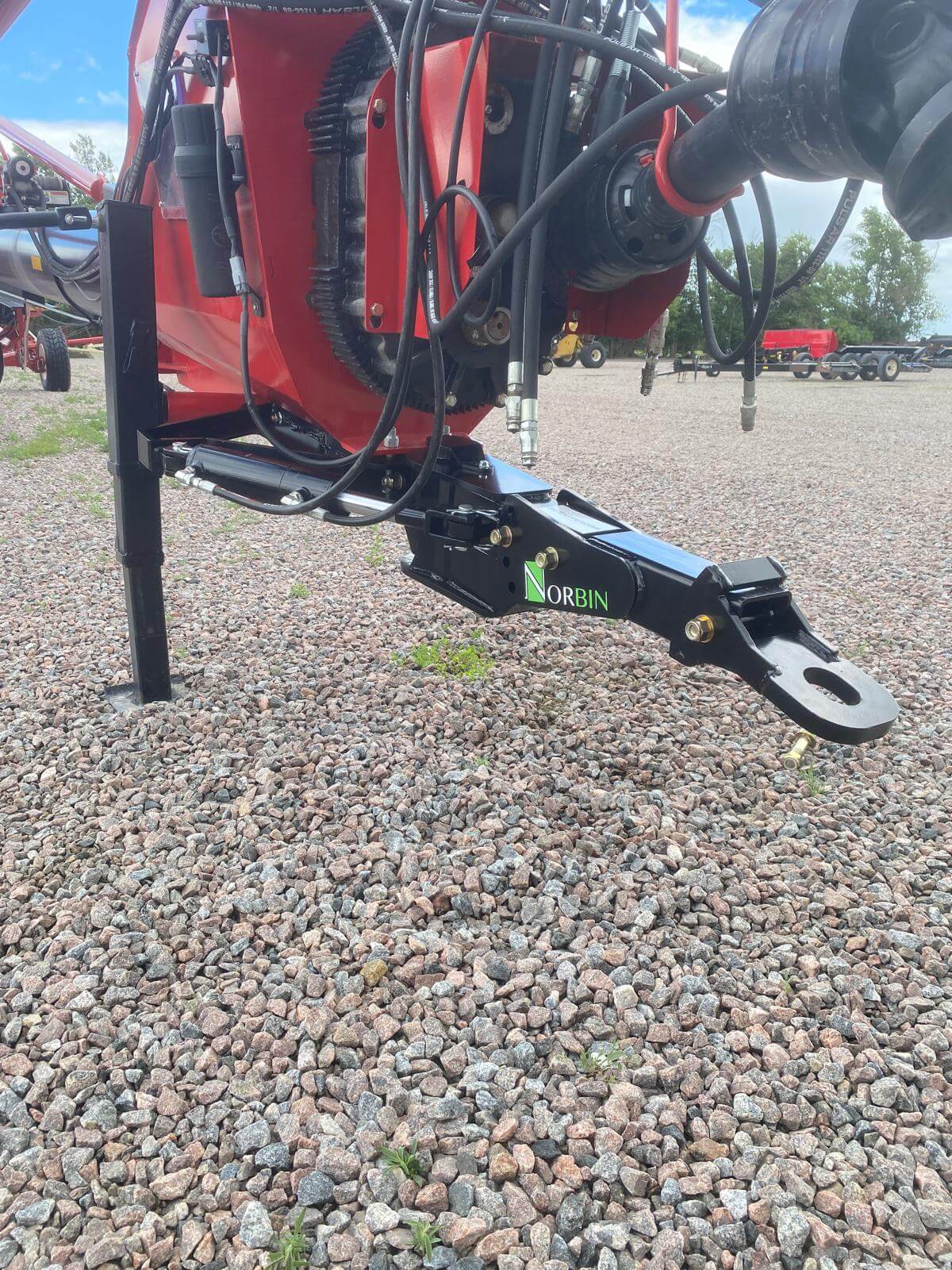

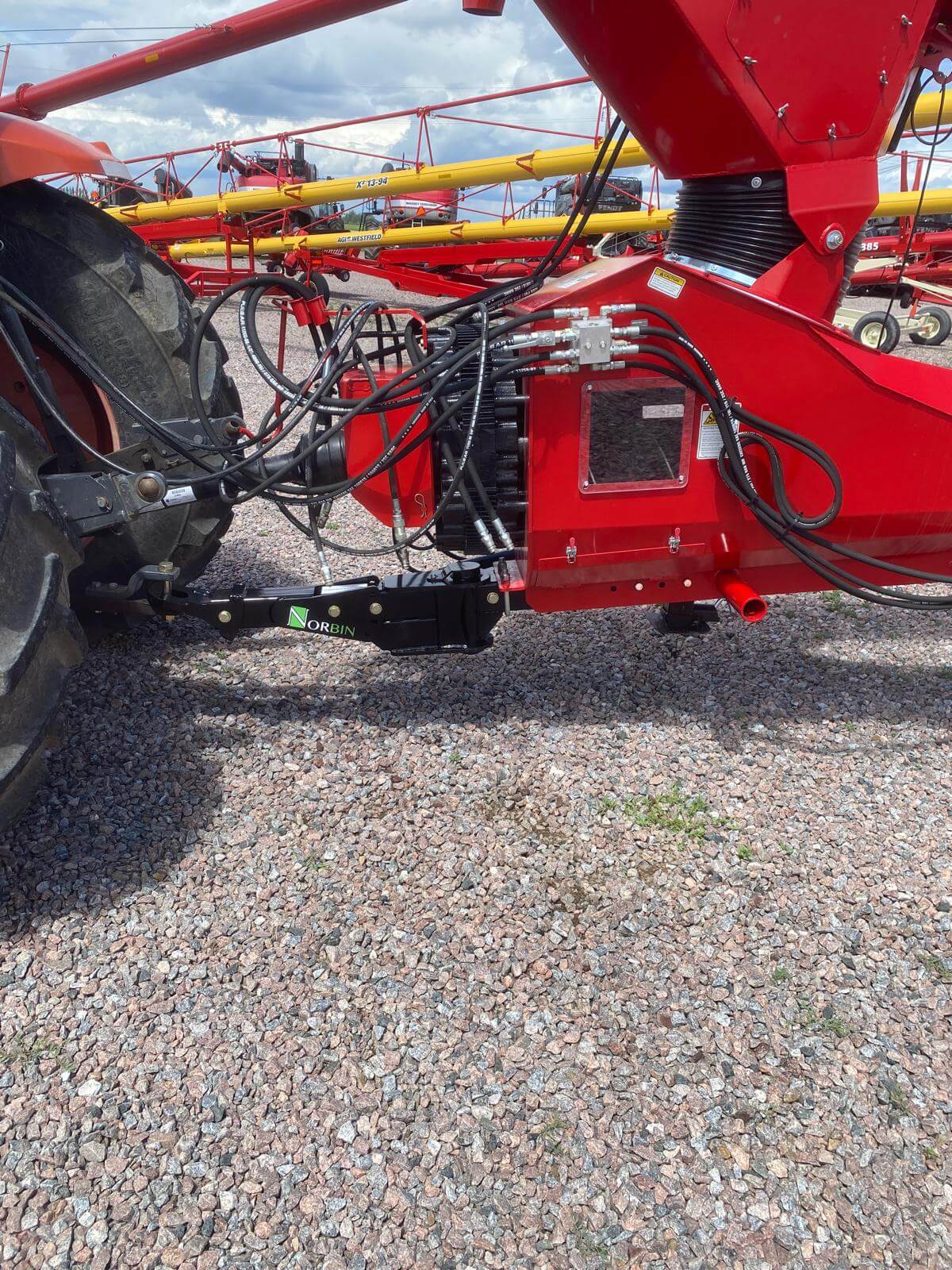

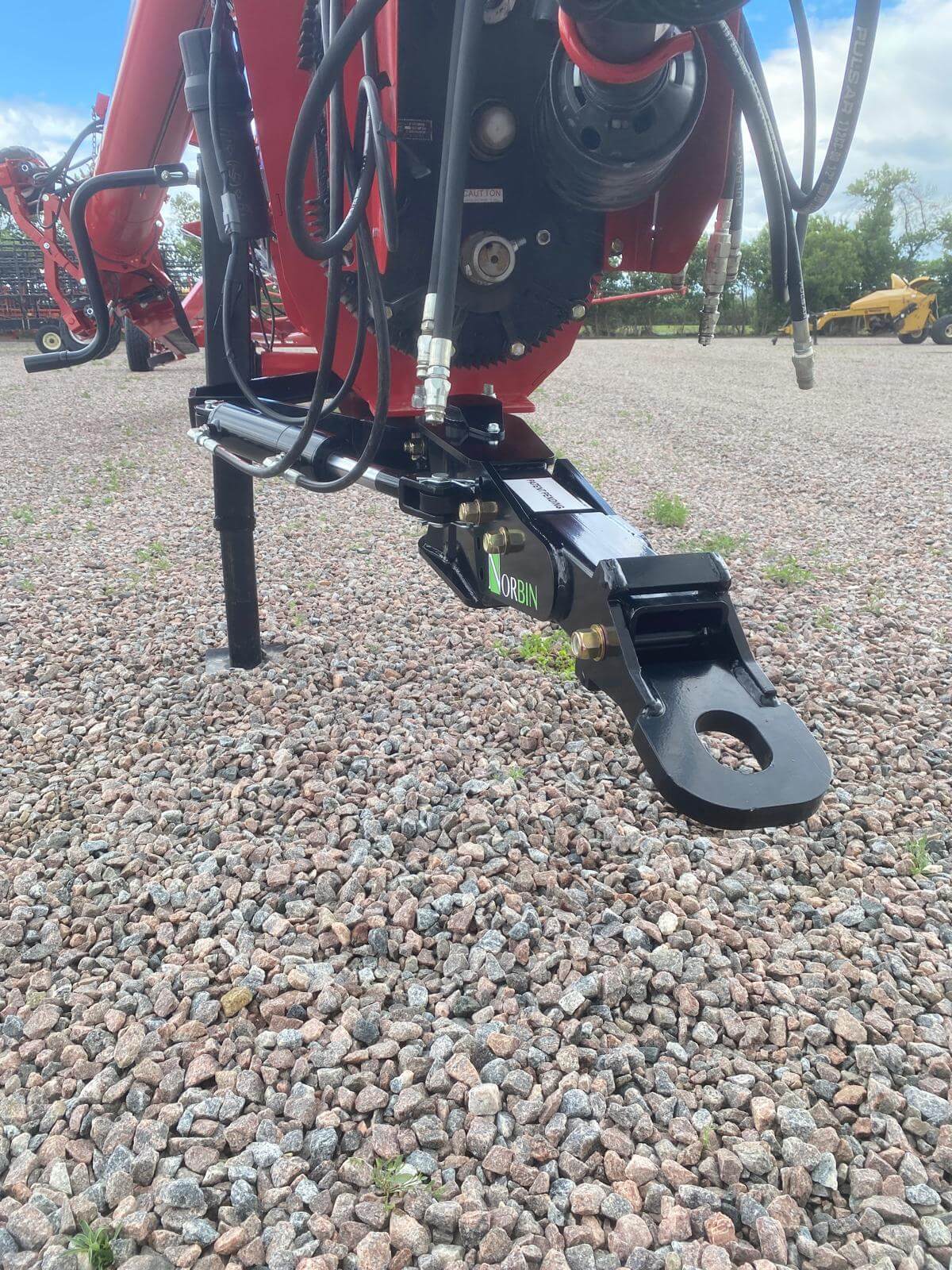

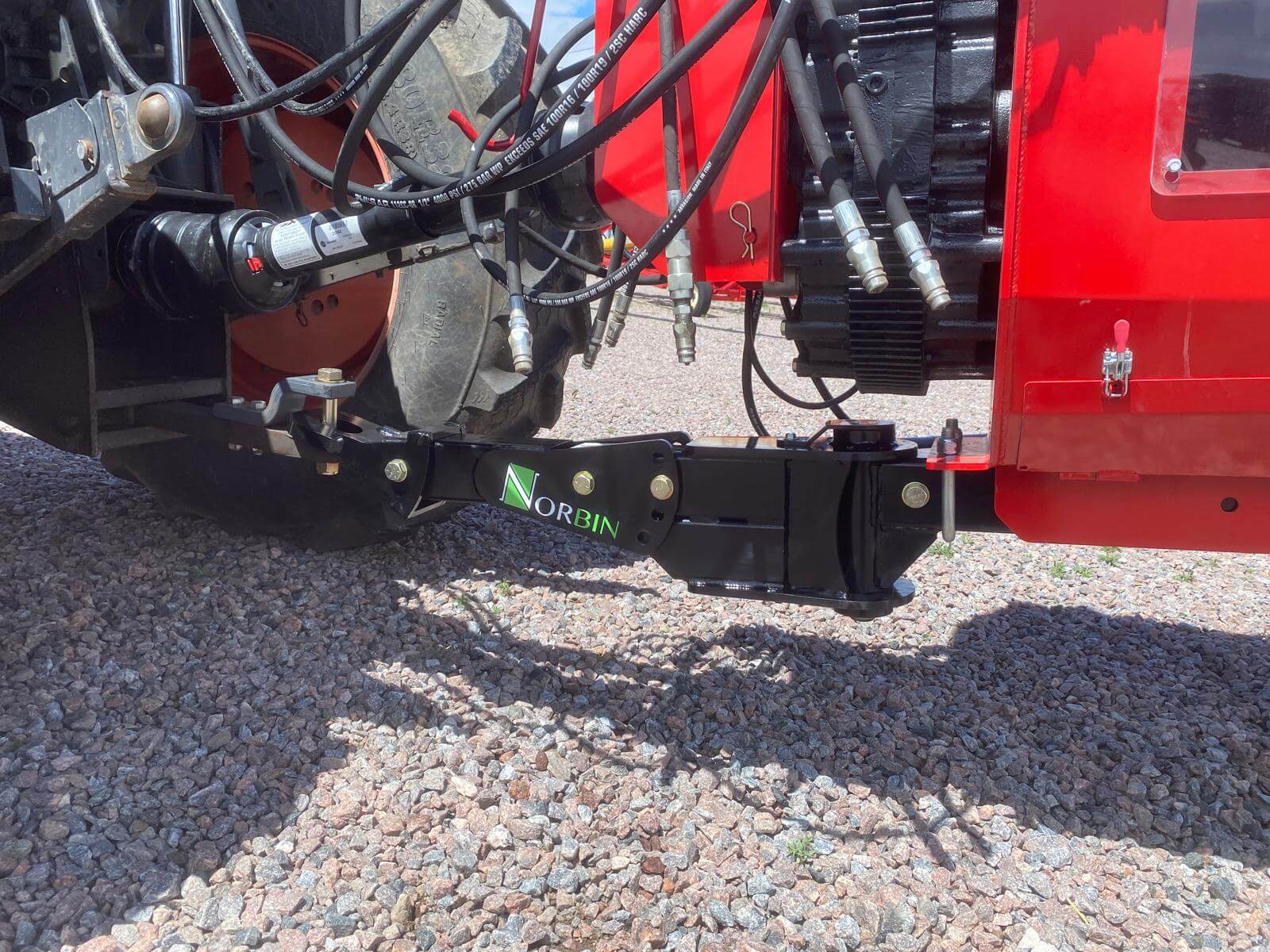

Gallery
Frequently Asked Question (FAQ)
FAQ: Can the PTO handle the increased angle from AimPro?
Yes. Most modern grain augers are equipped with a wide-angle CV (constant velocity) PTO shaft that is designed to handle operating angles of up to 40 degrees.
The AimPro system has a maximum PTO angle of 35 degrees, which keeps it safely within the rated working range of standard wide-angle CV drivelines.
If your auger is not equipped with a Wide-Angle Constant Velocity (CV) PTO, it can easily be upgraded.
The following is typical but not guaranteed on every auger:
| Brand | PTO type used | Max Capability |
|---|---|---|
| Meridian | Wide-angle / CV PTO | Around 35° |
| Brandt | CV PTO driveline | ~35–40° |
| Farm King | Wide-angle PTO | ~35° |
| AGI / Westfield | Heavy-duty CV PTO | ~35–40° |
